• Automated High Beam Chamber Filter Press KFP-U, 2x2-meter plate size, usable volume 10.7 m³
• Automatic opening of the filter plate package, vibration system for cake removal and filter cloth washing system
• Container-based flocculant station with fully automatic flocculant dosing based on sedimentation measurement

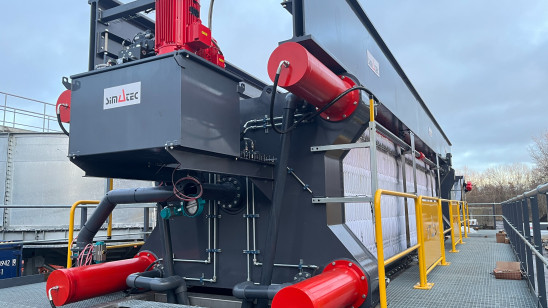

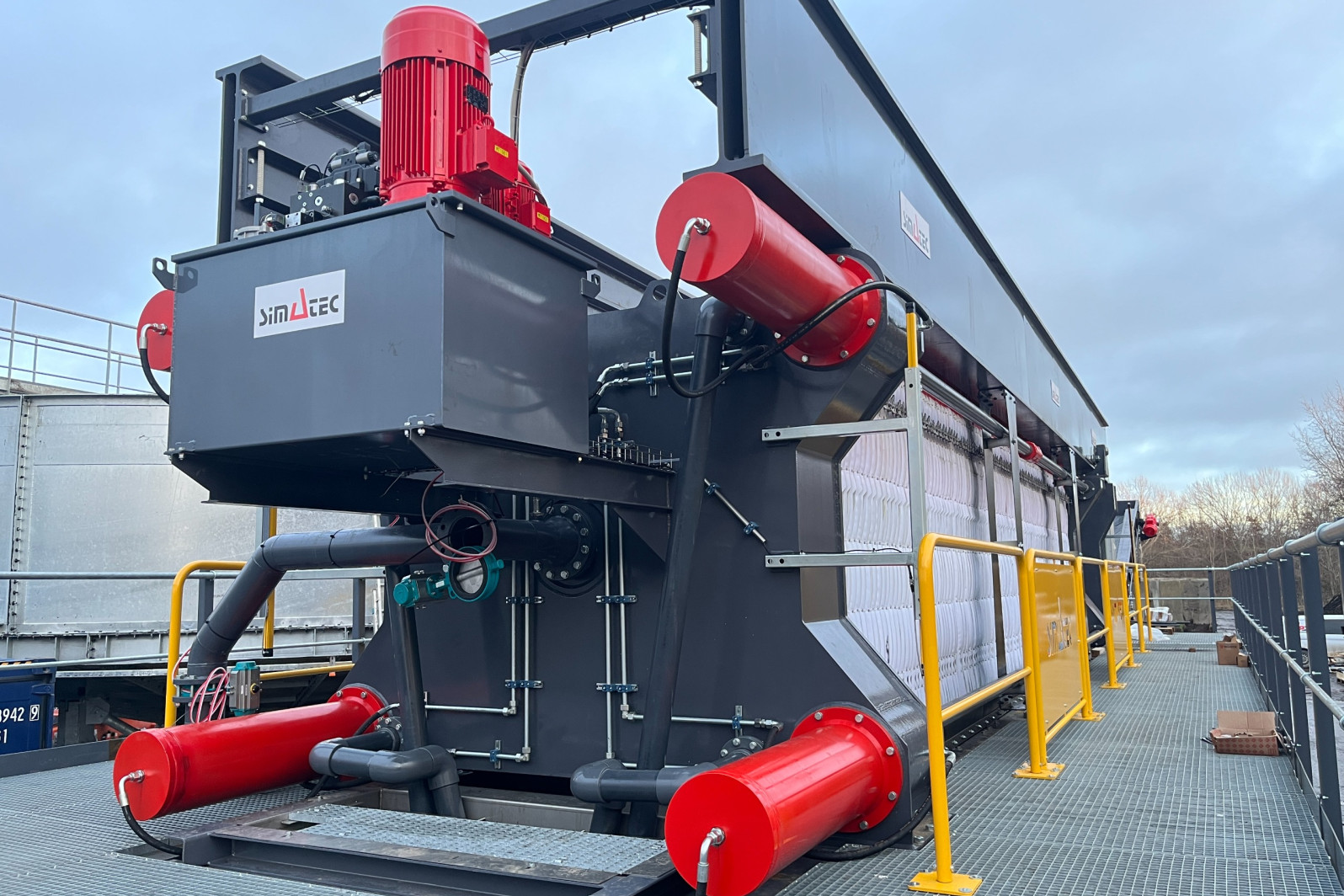

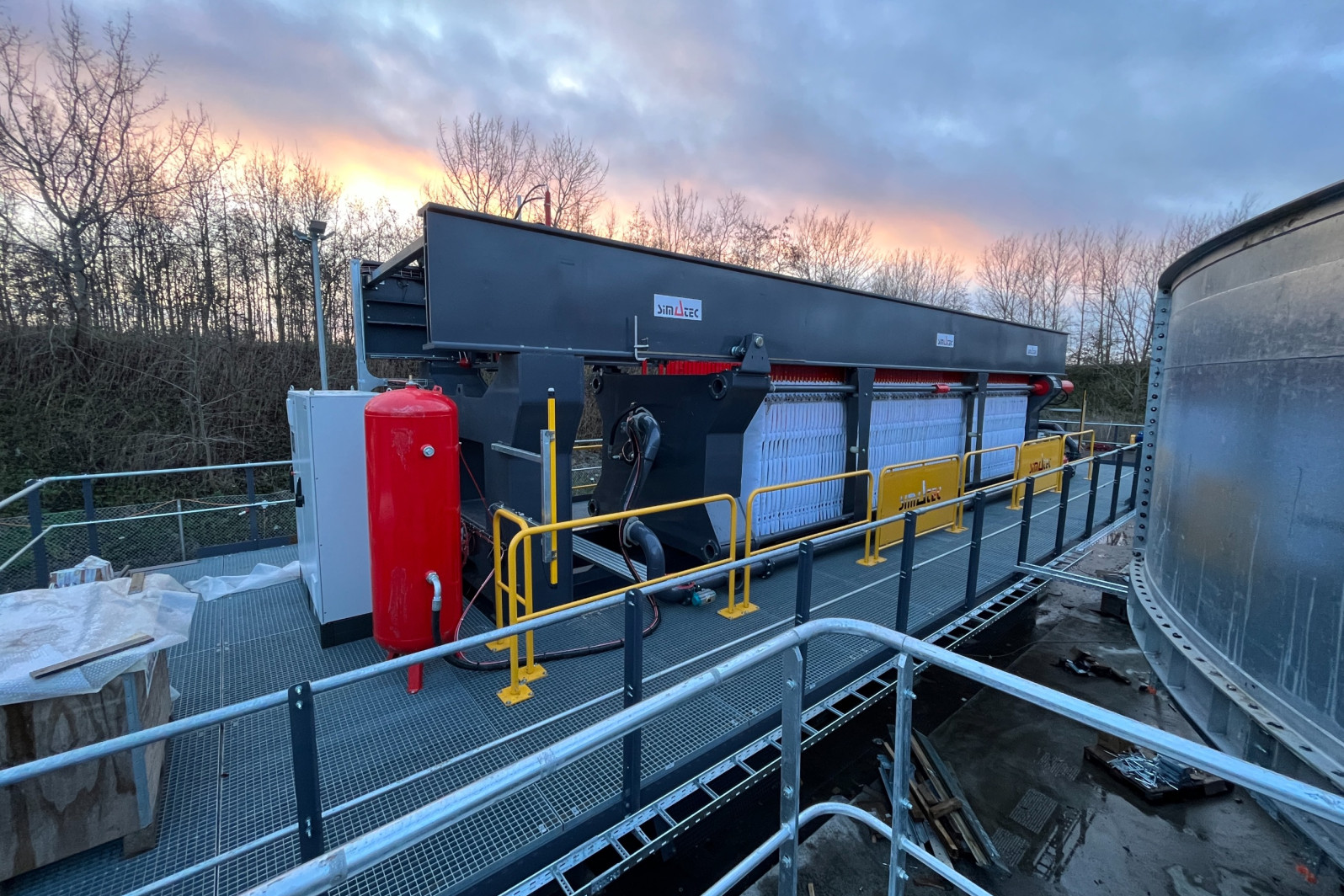

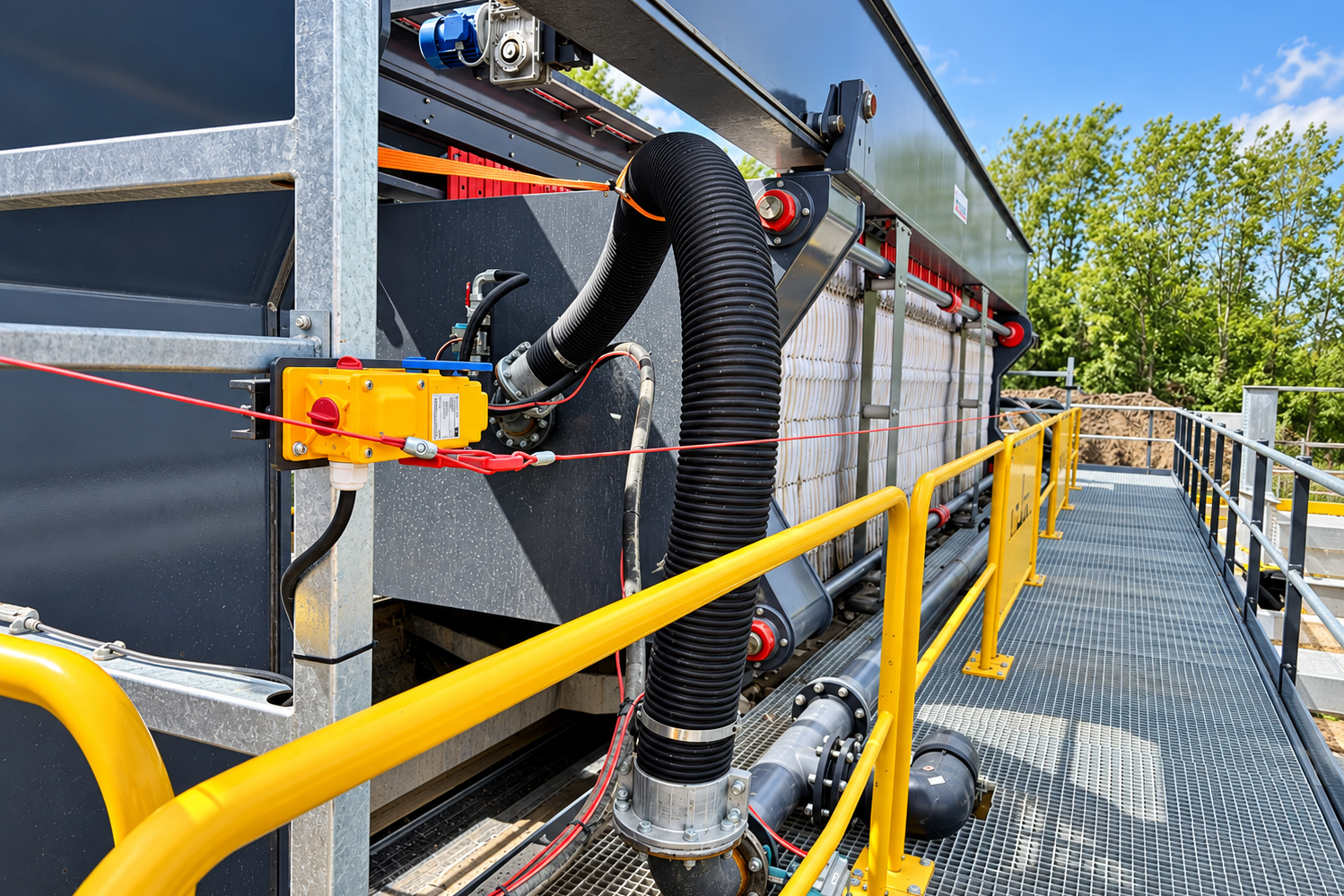

For the GIPOWASH 15 soil washing plant in Denmark, key components for water treatment and sludge dewatering were supplied. At the heart of the installation is the fully automated KFP-U chamber filter press with a plate size of 2 x 2 metres, designed for continuous operation without the need for dedicated operating personnel. Automatic opening of the filter plate pack, a cake discharge shaking system and an automatic filter cloth washing system ensure a continuous dewatering process.

The water treatment system includes the separation of solids and the dewatering of the resulting sludge into stackable filter cakes. The installation is complemented by a feed pump, a fresh water buffer tank with high-pressure pump, as well as a flocculant preparation and dosing unit. The dosing quantity is controlled based on sedimentation measurement to prevent over- and underdosing.

The scope of supply included the complete water treatment and sludge dewatering system, including engineering, transportation, on-site assembly of the chamber filter press delivered in sections, and cold commissioning of the plant.
